- 技術說明
- 尺寸參數
1)本去皮機適用于液壓平板脫模工序,;
2)MPM1.8凍品脫模機是平板速凍裝置的配套設備,主要適用于外形尺寸為520*290*60mm,,凍品尺寸為485*255*60mm的??颉,?紤]到不同用戶所使用的??蛲庑纬叽绲淖兓椭谱髡`差,??蛲庑伍L度可在520-537mm,,寬度可在292-305mm之間調整,以適應用戶的需要,。如有特殊要求,,可特殊定制;

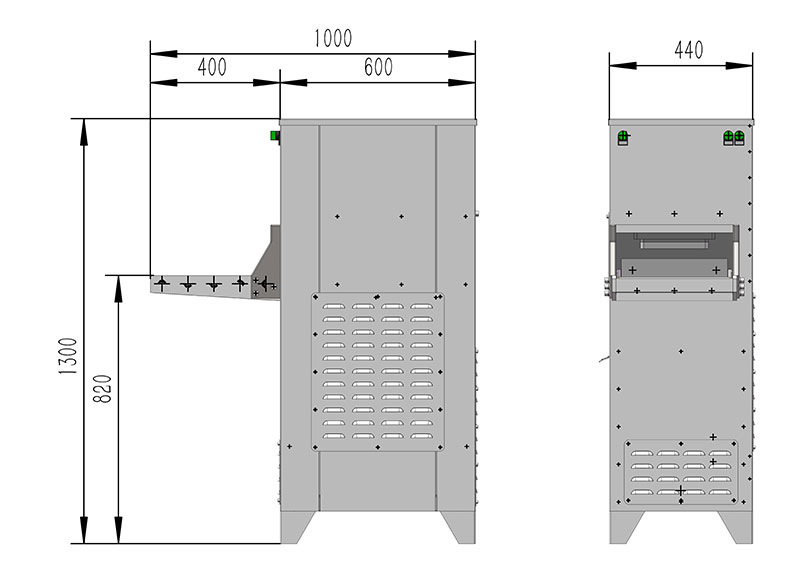

3)設備外形尺寸:1000*440*1300mm,;
4)最大脫模力:1800Kg,;
5)最大脫模高度:80mm;
6)油缸 :φ63*95,;
7)油泵 :1.5KW,,1450r/min;
8)流量 ,;9.6L/min,;
9)工作壓力:4.5~5Mpa(通過溢流閥調整開關調整后用螺母鎖定);
10)系統最高工作壓力:6.3MPa;
11)推薦系統工作介質,;N46抗磨液壓油,;
12)正常工作油溫 : 30℃~55℃;
13)額定電壓 : 380V/50HZ,;
1.This machine is suitable for hydraulic stripping ;
2.MPM1.8 Frozen Product Stripper is a supporting equipment of hydraulic stripper. It is mainly used for mould frame with overall dimensions of 520*290*60mm and frozen product dimensions of 485*255*60mm. As mould frames used by different users are different in size and have production error, frame length can be at 520-537mm and width at 292-305mm so as to meet user requirements. The product can be customized according to special request:
3.Dimensions of machine: 1000*440*1300mm,;
4.Max. mould release force: 1800Kg;
5.Max. mould release height: 80mm,;
6.Oil cylinder : φ63*95,;
7.Oil pump : 1.5KW,1450r/min,;
8.Flow rate ,; 9.6L/min;
9.Working pressure: 4.5~5Mpa(After adjusting switch via overflow valve,
use nuts to lock),;
10.Max. system working pressure: 6.3MPa,;
11.Recommended working medium; N46 anti-wear hydraulic oil,;
12.Normal oil temperature : 30℃~55℃,;
13.Rated voltage : 380V/50HZ;
